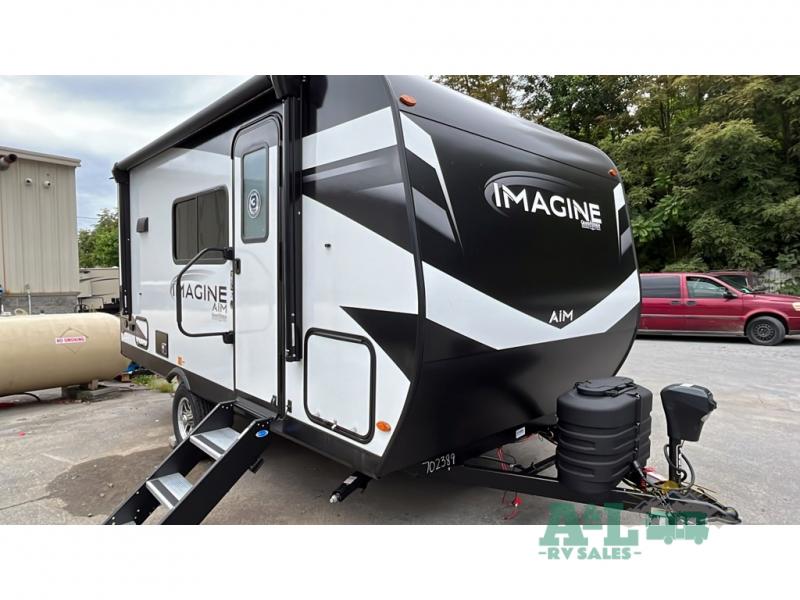

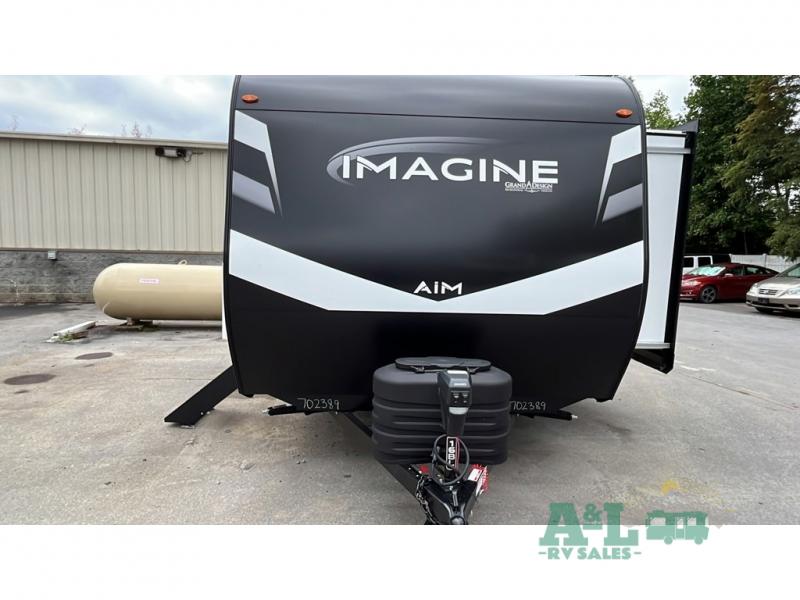

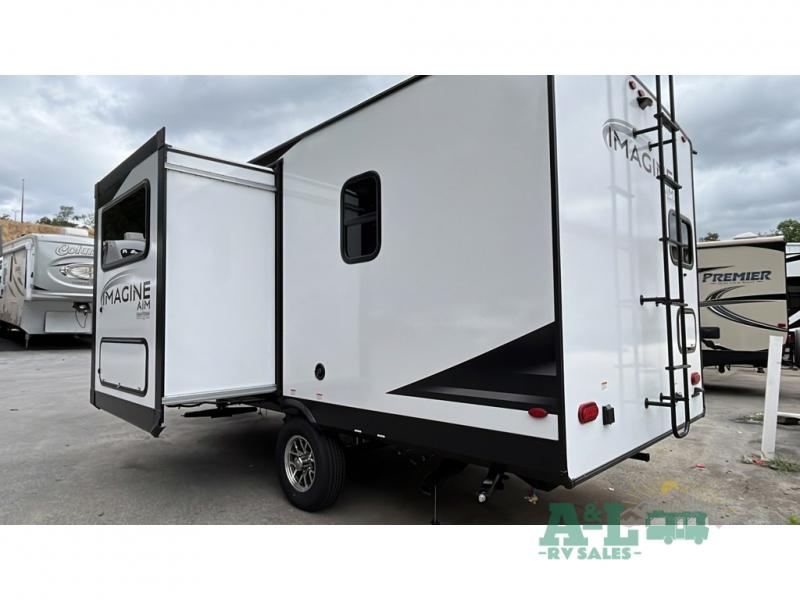

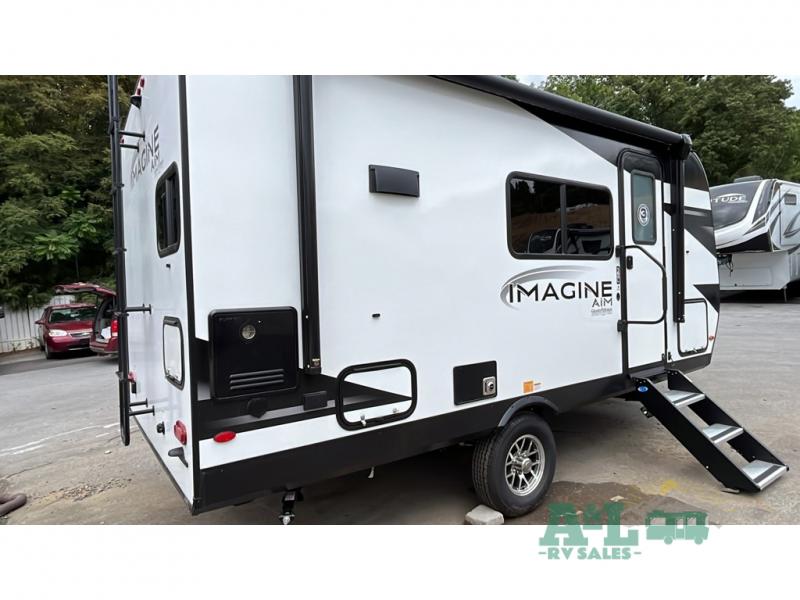

New 2024 Grand Design Imagine AIM 16BL

Travel Trailer

Stock #IM2389

Johnson City, TN

Available for deposit and Warranty Forever!

1 of 28

+28

Sleeps 4
1 Slides
Bunkhouse

Murphy Bed

20ft Long
3,976 lbs

See All Specs

Specifications

Sleeps	4	Slides	1
Length	19 ft 11 in	Ext Width	8 ft
Ext Height	10 ft 11 in	Hitch Weight	406 lbs
GVWR	5495 lbs	Dry Weight	3976 lbs
Fresh Water Capacity	37 gals	Grey Water Capacity	45 gals
Black Water Capacity	37 gals	Tire Size	ST225/75R15LRE
Furnace BTU	20000 btu	Number Of Bunks	2
Available Beds	Murphy	Refrigerator Type	12V
Refrigerator Size	6.2 cu ft	Convection Cooking	Yes
Cooktop Burners	2	Number of Awnings	1
LP Tank Capacity	20 lbs	Water Heater Type	On Demand Tankless
AC BTU	13500 btu	TV Info	LR High Def TV
Awning Info	12' Adjustable Power with LED Lighting	Axle Count	1
Number of LP Tanks	2	Shower Type	Walk-In Shower
Electrical Service	30 amp	VIN	573TE2011R7702389

Features

Standard Features (2024)

Exterior

Backup Camera Prep
80% Tint Radius Safety Glass Windows
20# LP Bottles (2) w/Level Gauges
Radius Entry Door
High-Capacity Water Pump
Battery Kill Switch (Pass Thru)
Extra Large 2” Fresh Water Drain Valve
Oversized Tank Capacities
Dedicated Sewer Hose Carrier
Universal Docking Station
Spare Tire and Carrier
Front Rock Guard
Accessory Hitch Receiver
Exterior Cooking Griddle w/ Metal Pullout Drawer

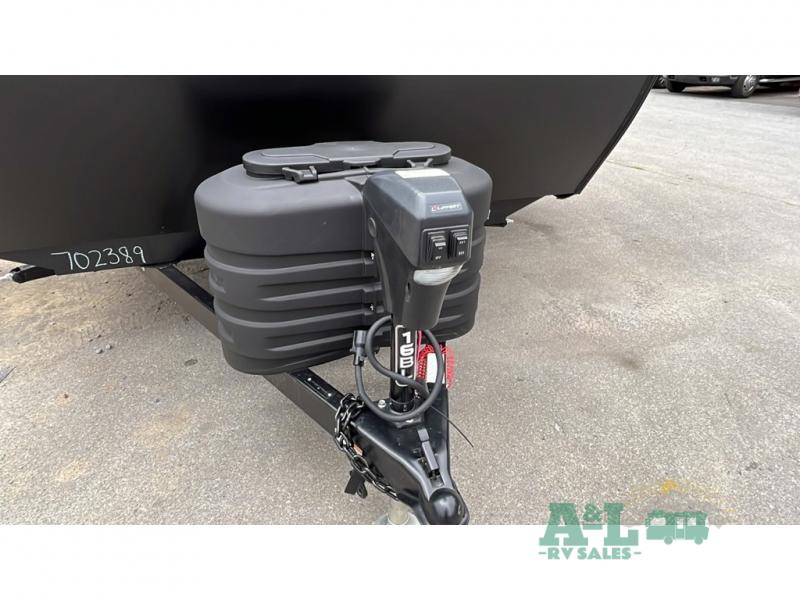

Power Tongue Jack
Tuff-Ply Pass Thru Flooring

Construction

Gel Coated Fiberglass Exterior
One-Piece Roof Membrane with Limited Lifetime Warranty
Easy Access Low Point Drain Valves
Friction Hinge Entry Door
Magnetic Storage Door Catches
Laminated Aluminum Framed Rear Wall (R-7)
Laminated Aluminum Framed Side Walls (R-7)
Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
Laminated Aluminum Framed Main Floor (R-30)
5" Radius Wood Framed Roof (R-40)
Heated and Enclosed Underbelly with Suspended Tanks
Designated Heat Duct to Subfloor
High Density Roof Insulation with Attic Vent
Moisture Barrier Floor Enclosure
Double Insulated Roof and Front Wall
Heated and Enclosed Dump Valves

Running Gear

Aluminum Rims

Frame & Chassis

Power Tongue Jack

Interior

Solid Drawer Fronts
Solid Core Cabinet Stiles
Pre-Drilled and Screwed Face Frames
Ball Bearing Full Extension Drawer Glides
Large Panoramic Window
78" Interior Ceiling
Telescoping Dinette Table
Residential Cabinetry
Premium Window Treatments
Wireless Pop-Up Charger w/2 USB Outlets

Kitchen

Residential Countertops
2-Burner Cook Top
Stainless Steel Sink

Electrical

6" Coiled Break-away Cable
Adjustable Power Awning w/ LED Lights
LED Interior Lighting
30 AMP Service
Detachable Power Cord
Motion Sensor Entry Lighting (LED)
Compass Connect
Tire Linc TPMS Prep
200W Roof Mounted Solar Panel
Roof Mounted Quick Connect Plugs
30 AMP Charge Controller

HVAC

Cabinet Mounted Heat Ducts
High Efficiency AC System
High Capacity Furnace
Residential (Ductless) Heating System Throughout

Plumbing

On-Demand Tankless Water Heater
Black Tank Flush
Oversized Holding Tanks

Bedroom

Residential Bedspread
Queen Murphy Bed w/ Storage Drawers (14MS, 15RB, 16BL, 18BH)
Master Suite with Queen Bed (15BH & 16ML)

Bathroom

Residential Walk-In Shower
Skylight Over Shower
Power Vent Fan

Appliance

Convection Microwave
12V Refrigerator

Electronics

Hi Definition LED TV

AIM Peace of Mind Package

Aluminum Step Above Entry Steps
Dedicated Sewer Hose Carrier
Residential Cabinetry
Universal Docking Station
On-Demand Tankless Water Heater
Black Tank Flush
Aluminum Rims
Spare Tire and Carrier
Front Rock Guard
Accessory Hitch Receiver
Premium Window Treatments
6" Coiled Break-away Cable
Oversized Holding Tanks
Convection Microwave
Exterior Cooking Griddle w/Metal Pullout Drawer
Tuff-Ply Pass Through Flooring
Dual LP Tank Monitors

AIM Ultimate Power Package

Adjustable Power Awning w/ LED Lights
LED Interior Lighting
30 AMP Service
Hi Definition LED TV
Detachable Power Cord
High Efficiency AC System
Motion Sensor Entry Lighting (LED)
Power Tongue Jack
Compass Connect
Tire Linc TPMS Prep
Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
Wireless Pop-Up Charger w/Dual USB Ports

AIM Four Season Protection Package

High Capacity Furnace
Heated and Enclosed Underbelly with Suspended Tanks
Designated Heat Duct to Subfloor
High Density Roof Insulation with Attic Vent
Moisture Barrier Floor Enclosure
Residential (Ductless) Heating System Throughout
Double Insulated Roof and Front Wall
Heated and Enclosed Dump Valves

AIM Solar Package

200W Roof Mounted Solar Panel
Roof Mounted Quick Connect Plugs
30 AMP Charge Controller
12V Refrigerator

AIM Enhancement Package (Optional)

2nd Roof Mounted 200W Solar Panel & 2000W Inverter
Untamed Terrain 235/75R15 Tire Assembly
Tire Linc Tire Pressure Monitoring System
Factory Installed Backup Camera w/ Monitor
MAXAIRE Power Vent w/ Rain Sensor

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

No Pressure
Lots and lots rv’s. Loved looking around and no pressure.

David
They are awesome!!
They are awesome!! Can not say enough good things about this business!!

Brandi
Professional Sales and Service
Worked with the sales staff, finance manager and manager during our research and shopping for our new adventure-mobile. They all worked with us to find what we were looking for down to the last detail; professional, courteous and understanding throughout the process. We were provided the information

Charlie from Huntsville, AL

We are here to help, call us at
866-463-9242 or Contact Us

We are here to help!

866-463-9242
Contact Us
Unlock Best Price

A & L RV Sales is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, $999 Doc, and delivery. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at any of our 8 locations for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. Estimated payments are based on 15% down and 8.99% interest for new units and 9.99% interest for pre-owned units. Calculated payments do not include tax, tags, and title.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2024 Grand Design Imagine AIM 16BL

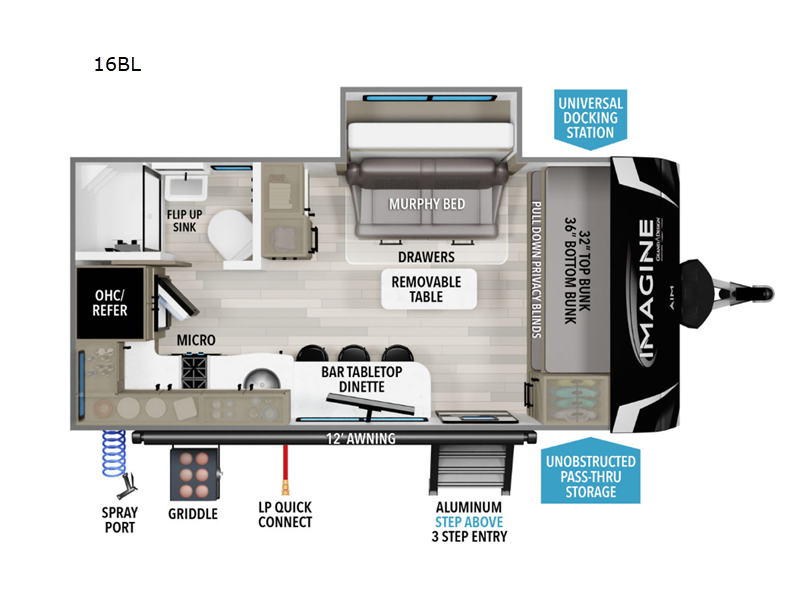

16BL Floorplan
