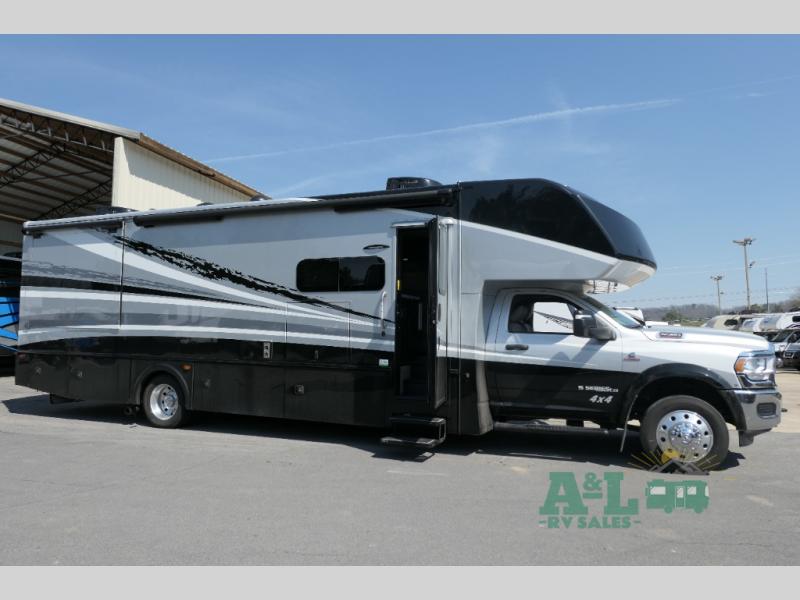

New 2024 Dynamax isata 5 34DS

Motor Home Super C - Diesel

Stock #IS7619

Sevierville, TN

1 of 26

+26

SALE PRICE: $207,987
MSRP: $300,523
Save: $92,536

Payments From: $1,533 /mo.

Sleeps 6
2 Slides
Bunk Over Cab

Outdoor Entertainment

36ft Long

See All Specs

Specifications

Sleeps	6	Slides	2
Length	35 ft 11 in	Ext Width	8 ft
Ext Height	12 ft 4 in	Int Height	6 ft 10 in
Hitch Weight	10000 lbs	GVWR	19500 lbs
Fresh Water Capacity	78 gals	Grey Water Capacity	45 gals
Black Water Capacity	45 gals	Tire Size	225/70R19.5G
Furnace BTU	42000 btu	Fuel Type	Diesel
Miles	665	Engine	Cummins 6.7L I6 Turbo
Chassis	Ram 5500 SLT	Horsepower	360 hp
Fuel Capacity	52 gals	Wheelbase	265 in
Number Of Bunks	1	Available Beds	RV King
Torque	800 ft-lb	Refrigerator Type	Residential Stainless Steel with Ice Maker
Refrigerator Size	16 cu ft	Cooktop Burners	3
Number of Awnings	1	Axle Weight Front	7250 lbs
Axle Weight Rear	13500 lbs	LP Tank Capacity	20.3 gals
Water Heater Type	Truma Aqua Go Comfort On Demand	AC BTU	30000 btu
TV Info	Cab 39" LED Smart TV, BR 32" LED Smart TV, Ext. 32" LED Smart TV	Awning Info	16' Dual-Pitch Armless with LED Lighting
Gross Combined Weight	37500 lbs	Shower Type	Radius
Electrical Service	50 amp	VIN	3C7WRNDL8PG627619

Description

Dynamax isata 5 Super C diesel motorhome 34DS highlights:

Rear Private Bedroom
Bunk Over Cab
Full Bathroom
Sofa
Exterior 32" TV

If you want a spacious and luxurious getaway, then you need this motorhome! The rear private bedroom has a gel-infused memory foam 71" x 78" king bed slide to relax on while you watch a movie with the 32" LED smart TV, as well as two wardrobes to keep your clothes looking their best. The chef can whip up their best home cooked meals with the three burner gas range, the 16 cu. ft. residential refrigerator with ice maker, and the countertop extension or you can simply throw some leftovers into the convection microwave and enjoy it at the booth dinette. The bunk over cab offers a comfortable sleeping space, and the sofa can also transform into an extra sleeping space or you can switch it out for the optional theater seating instead. Store all of your outdoor gear in the exterior seamless rotocast storage compartments with LED lighting, watch the big game with the exterior 32" TV, and stay protected by the 16' dual-pitch armless awning!

Each one of these Dynamax isata 5 Super C diesel motorhomes offer control, comfort, and stability thanks to the Ram 5500 SLT chassis with factory 4-wheel drive! They are powered by a Cummins 6.7L I6 turbo diesel engine and an AISIN HD 6-speed automatic transmission. Their construction consists of 2" aluminum-framed, laminated sidewalls with block foam insulation, composite exterior fiberglass, and a composite flooring substrate that is lightweight and moisture resistant. You will see their attention to detail everywhere you look including ambient lighting, premium cut and buffed paint finish, and a water filtration system for clean water where ever you go. They even have a single 190 watt solar panel with a 30 amp controller so you can go off the grid. Come check out your favorite model today!

Features

Standard Features (2024)

Chassis

Ram® 5500 SLT Chassis- Factory 4-Wheel Drive
Cummins® 6.7L I6 Turbo Diesel Engine (360hp/800 ft.-lbs. of Torque)
AISIN® HD 6-Speed Automatic Transmission
52-Gallon Fuel Tank
9-Gallon Diesel Exhaust Fluid Tank
Trailer Hitch (10,000 Tow lbs./750 tongue lbs. ) with 7-Way Round Tow Connection
Weigh Safe Trailer Hitch Receiver
Active Brake Assist
Adaptive Cruise Control
Ram® OEM Trailer Brake Control
Cummins® Smart Exhaust Brake System
Ram® ESC Suspension and Stability Package
DynaRide+ Upgraded Suspension System featuring Four-Point Bilstein® Gas-Charged Shock Absorbers and Rear MORryde® RSX™ Rubber Shear Springs with Heavy-Duty Rear Sway Bar
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Dual 12V Chassis Batteries
Dual 220-Amp Alternators (440 Total Amps)
4-Wheel ABS
B-20 Bio Diesel Capability
Ram® 50KSI Chassis Construction
Engine Block Heater
Aluminum Running Boards
Aluminum Wheels (set of four)
Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
Single Front Wheels: Aluminum (19.5” x 6.0”)
Dual Rear Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
4.88 Rear Axle Ratio
Daytime Running Lights
Heated, Leatherette Reclining Driver and Passenger Seats with Armrest
Power Driver Seat with Power Lumbar Control
Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
12V and USB Accessory Ports
Temperature/Compass Gauge with Traveler/Mini-Trip Computer
8.4” Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Sirius/XM® Radio-Ready, Media Hub, (SD, USB, AUX), Apple® CarPlay™, Android® Auto™, and Six (6) Speakers
Heated Steering Wheel
Adjustable Steering Column
Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
Power Windows and Locks
3-Point Seat Belts
Front Safety Airbags
Drink Holders

Construction

2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
Composite Exterior Fiberglass (No Exterior Wood)
Aluminum-Framed Floor
Composite Flooring Substrate (Lightweight & Moisture Resistant)
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Foil-Lined Ductwork Throughout
Fiberglass Front Cap, and Front Wing Panels
Rear Bumper
Automatic, 4-Point Hydraulic Leveling Jacks
Dark-Tinted, Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
Electric Slide System

Exterior

Custom Full Body Paint Package
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Slideout Toppers
Armless Patio Awning with LED Lighting and Motion-Activated Retraction
LED Patio Light
Power Entry Steps with Upgraded SeaDek Sep Treads
Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
Keyless Entry Touch Pad at Entry Door
Lighted Acrylic Entry Grab Handle
Exterior Wall-Mounted Entertainment Center with 32” LED Smart TV (N/A - 28SS)
Exterior TV Mount (28SS Only)
Front and Rear LED Clearance and Marker Lighting
Rear LED Docking Lights
Rear "DYNAMAX" Rock Guard

Interior

Front Cab-Over Bunk Area with Mattress (50” x 80”) and Privacy Curtain
Premium Vinyl Flooring Throughout
Soft-Touch Padded Vinyl Ceiling
LED Recessed Ceiling Lights
Sprung, Residential Style Dinette Seats with Lift Up Storage
Tri-Fold Sofa (30FW, 34DS)
Coordinating Window Treatments
Blackout Roller Shades
Hardwood Shaker-Style Cabinetry
Full Extension, Soft-Closing Drawer Guides (Where applicable)
Hidden Hinges
39” LED Smart TV (Living Area)
Sound Bar (Living Area)
Entry with Non-Skid Rubber Steps and Risers
Thermal, Reflective Front Privacy Shades
USB Charging Ports

Kitchen

Gas Range with Glass Cover
Convection Microwave Oven
16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door and Stainless Steel) (N/A 28SS)
12V 10 cu. ft. Refrigerator with Ice Maker (28SS Only)
Solid Surface Countertops with LED Lighting and Backsplash
Stainless Steel Double-Bowl Sink with Solid Surface Covers
Residential Stainless Steel Spring Gooseneck Faucet
Pantry (Floor plan specific)
Overhead Cabinet Accent Light
Under-Cabinet Lighting
Kitchen Trash Can
MaxxAir® Power Vent with Built-In Rain Cover

Bedroom or Bunk Area

King Bed (71” x 78”) with Gel-Infused Memory Foam Mattress (34DS)
Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress (30FW, 28SS)
Deluxe Padded Headboard (28SS & 34DS)
Designer Bedding Package
32” LED Smart TV
Cedar-Lined Wardrobe
LED Reading Lights
USB Charging Ports

Bathroom

Designer Shower with Skylight
Oxygenics Body Spa® RV Shower Head
Stainless Steel Sink with Residential Faucet
Porcelain Electronic-Flush Macerator Toilet (N/A – 30FW)
Porcelain Foot-Flush Toilet (30FW)
MaxxAir® Power Vent with Built-In Rain Cover

Utilities

Dual Low-Temp Lithium Auxiliary Batteries (200aH Total)
Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
Battery Disconnect
50-Amp Service
3,000W Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
Solar Panel- Single 190 Watt with 30 Amp Controller
Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pump
40,000-BTU LP Furnace with Electronic Ignition
60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Exterior Shower in Service Bay
Exterior GFCI Receptacle
Winegard® AIR 360+ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
4x4 HDMI Matrix
Cable TV/Satellite Hookup in Service Bay
Black Tank Flush
SureLevel Tank Level Monitoring System
Furnace-Heated Utility Compartment
Enclosed and Furnace-Heated Holding Tanks
Upgraded 12V On-Demand Water Pump (4 Gallons per minute)
Carbon-Monoxide, LP, and Smoke Detectors
Fire Extinguisher

Options

12V 10 cu. ft. 2-Door Compressor-Driven Refrigerator in place of Standard Refrigerator (30FW, 34DS)
Dual, Power Reclining Theater Seats in place of Dinette (28SS Only)
Dual, Power Reclining Theater Seats in place of Sofa (30FW, 34DS)
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
Xplorer Package - includes Dual-Pane, Dark-Tinted Frameless Windows; Insulated Cab Curtain; Four Lithium House Batteries (400aH Total); 950W Solar Package; & Insulated Utility Bay with Secondary Tank Heater and Temperature Sensor (N/A 34DS)

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

VERY HAPPY WITH OUR PURCHASE
When it came time to purchase our travel trailer, I knew that I wanted to purchase from a smaller, local company instead of buying from one of the big sellers. I found our trailer at the Greenville location and when I reached out to the team there, they took the time to answer my many questions, listen

Bill from Virginia Beach, VA
Knowledgeable and professional
Knowledgeable and friendly staff that helped us find the perfect camper.

James
Great Experience
Great place to buy an RV. They have a lifetime warranty.

Lee

We are here to help, call us at
888-842-7775 or Contact Us

We are here to help!

A & L RV Sales is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, $999 Doc, and delivery. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at any of our 8 locations for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. Estimated payments are based on 15% down and 8.99% interest for new units and 9.99% interest for pre-owned units. Calculated payments do not include tax, tags, and title.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2024 Dynamax isata 5 34DS

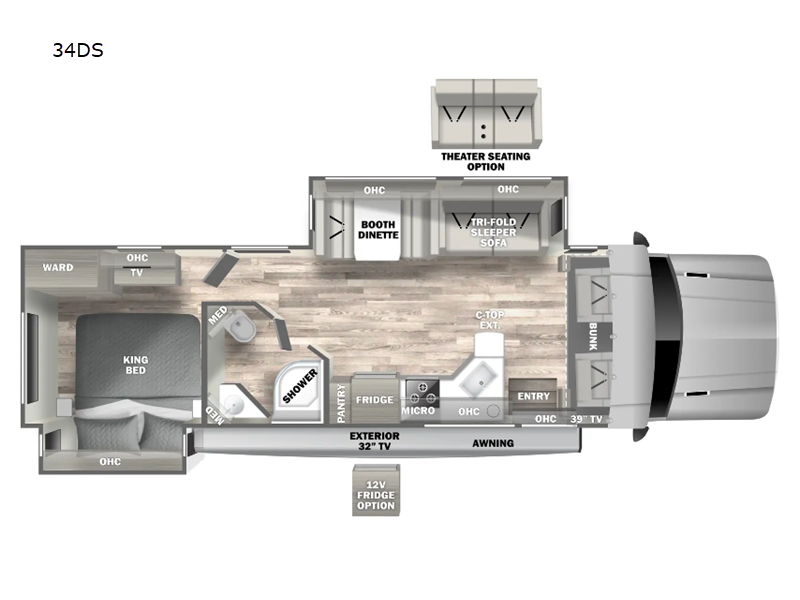

34DS Floorplan
