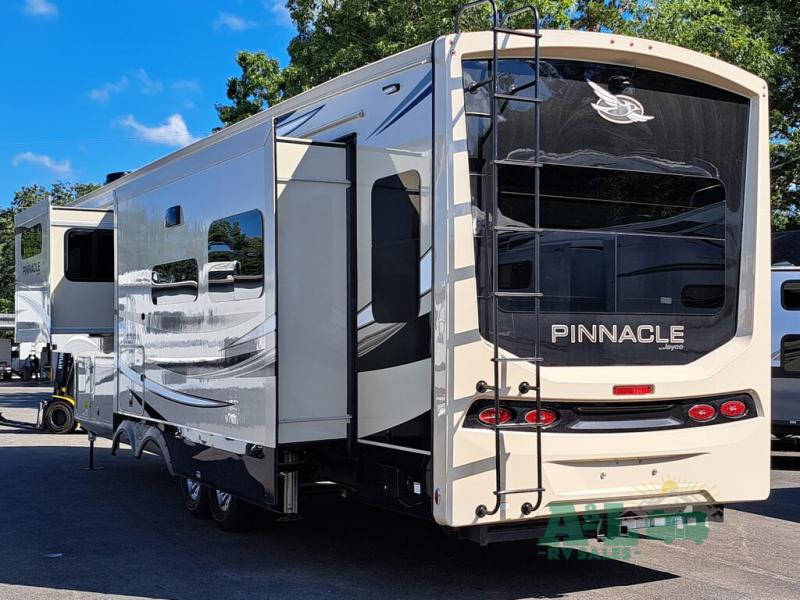

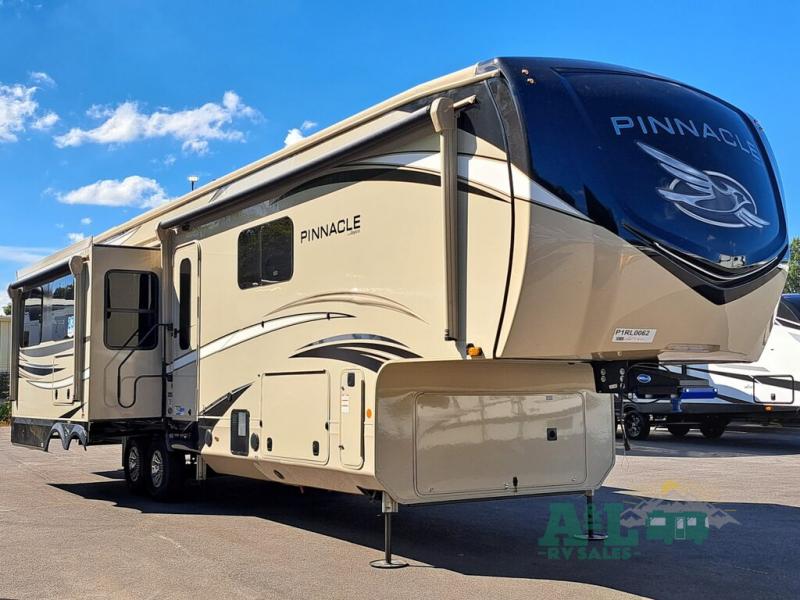

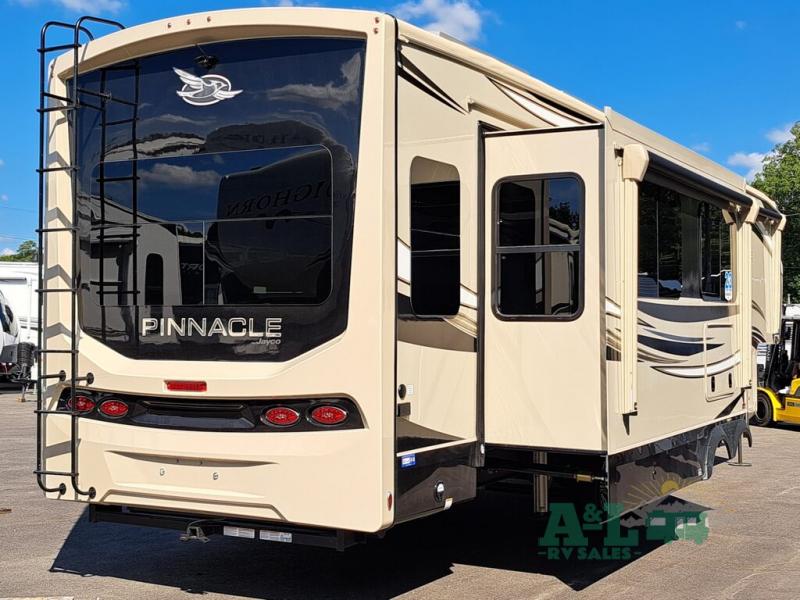

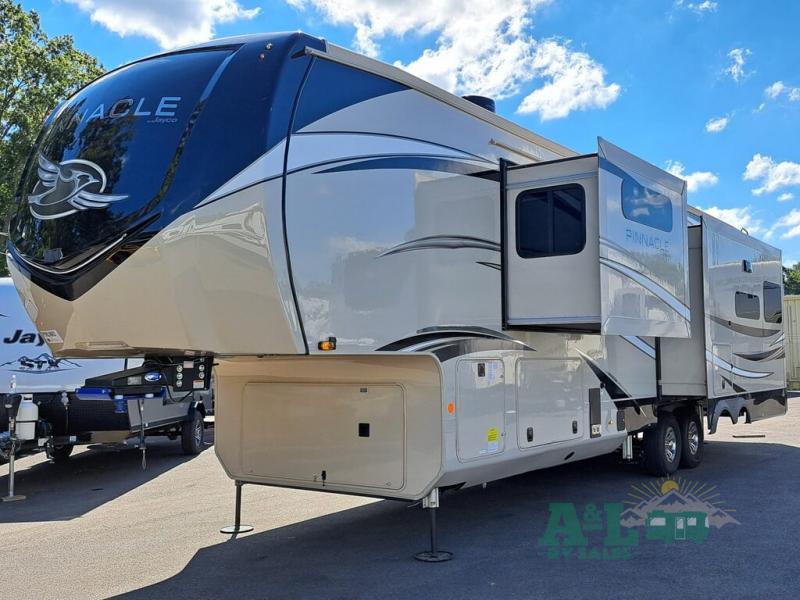

New 2023 Jayco Pinnacle 36FBTS

Fifth Wheel

Stock #JAL0062

Richmond, VA

Available for deposit and Warranty Forever!

1 of 51

+51

Sleeps 4
3 Slides
Front Bath

Rear Living Area

41ft Long
13,635 lbs

See All Specs

Specifications

Sleeps	4	Slides	3
Length	40 ft 10 in	Ext Width	8 ft 6 in
Ext Height	13 ft 4 in	Int Height	8 ft 6 in
Hitch Weight	2940 lbs	GVWR	16500 lbs
Dry Weight	13635 lbs	Cargo Capacity	2865 lbs
Fresh Water Capacity	75 gals	Grey Water Capacity	87 gals
Black Water Capacity	87 gals	Tire Size	16"
Furnace BTU	40000 btu	Available Beds	King
Refrigerator Type	Residential	Cooktop Burners	3
Number of Awnings	2	LP Tank Capacity	30 lbs
Water Heater Capacity	10 gal	Water Heater Type	Gas/Electric DSI
AC BTU	30000 btu	TV Info	LR 50" Smart LED HDTV, BR 32" TV, Ext. 32" TV
Awning Info	11' and 19' Electric with LED Lights	Axle Count	2
Washer/Dryer Available	Yes	Number of LP Tanks	2
Shower Type	Shower w/Seat	Electrical Service	50 amp
VIN	1UJCF0BV1P1RL0062

Description

Jayco Pinnacle fifth wheel 36FBTS highlights:

Spacious Master Bath
Fireplace
Two Power Awnings
King Bed Slide Out
Pantry
30" Residential Microwave

You can't go wrong with this fifth wheel that can sleep four! You will love how much space you have in the main living area thanks to the dual opposing slides, and there is a kitchen island here with a pull-out extension for added prep space. The convenient half bath is right off of the kitchen for quick restroom breaks, and you'll find a shoe garage and a wardrobe just as you enter the unit to keep the RV tidy. Head to the master bedroom for a rest on the king bed slide out, or you may want to watch a show on the 32" bedroom TV. The front master bath may be your favorite feature of this unit. Here, you'll find dual bath sinks, a walk-in shower with a seat, plus a spacious walk-in closet for your clothes. And don't overlook the exterior with its two power awnings, 32" exterior TV, and a Jayport with LP quick connect for your outdoor grill.

Each Pinnacle fifth wheel features Stronghold VBL lamination for the lightest, yet strongest construction in the RV industry. Add that to the Magnum Truss XL6 roof system and Climate Shield zero-degree tested weather protection and you'll be enjoying your fifth wheel for years to come. Some of the exterior conveniences you will appreciate are the Keyed-Alike lock system, the fully enclosed, universal docking center, and the 6-point hydraulic auto-leveling system for quick and easy set up. The 5 Star Handling Package will make towing a fifth wheel a walk in the park, and the two Whisper Quiet A/C units will keep you comfortable during the hot summer months. Inside, you'll enjoy the farmhouse stainless steel sink, the handcrafted hardwood glazed cabinetry, the vinyl flooring throughout, plus many more comforts. There is even a central vacuum system, a wireless remote control system, USB ports throughout, plus many more conveniences to make each trip enjoyable.

Features

Standard Features (2023)

Standard Exterior Equipment

Stronghold VBM™ aluminum framed and vacuum bond laminated gel-coated fiberglass exterior walls (including rear wall and slide room end walls)
12 in. structural steel I-beam with 10 in. steel drop frame.
Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one piece, seamless roof and a 20 year warranty material
Climate Shield™ zero-degree tested weather protection
- Fully enclosed and heated underbelly (ducted)
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof, floor, cap, and behind cap)
- PEX plumbing
JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patent-pending)
Painted fiberglass front cap with built-in specialty LED lighting
Frameless, dark tinted, safety glass windows
Custom automotive-grade vinyl exterior graphics package
102" widebody construction
Skirt metal enclosed drop frame
LED exterior lighting package
Dual 30 lb. propane bottles with auto regulator
Doorside compartment framed and vented for third propane bottle
Pass-through storage with Slam-latch™ baggage doors
Digital TV antenna with Wi-Fi extender
Exterior marine-grade speakers
Fully enclosed, universal docking center
- Selectable water connections
- Quick-connect outside shower
- Black tank flush
- Winterization and sanitation
- Whole coach cable hookups
Water heater bypass
Battery disconnect
Under-mounted spare tire
JayPort outside griddle prep (standard on all floorplans without standard outside kitchen)
Built in sewer hose carrier
3,000 lb. tow hitch with 4-way pin
Inverter pre-wire to select outlets
12V heat blankets on all holding tanks plus 12V heat tape on fresh water line

Standard Interior Equipment

Solid hardwood slide fascia
Handcrafted and glazed doors, drawers and trim
5/8 in. tongue and groove joined plywood floor decking
Vinyl flooring (Made in USA) throughout including slide rooms
Ceiling fan (select models)
LED interior lighting throughout
LED accent lighting above slideouts
Tri-fold hide-a-bed sofa with residential sleep surface (select models)
Dual USB charging ports throughout
12V charging station
JayVoice voice command system - controls lighting, A/C and furnace
"Shoe garage" in hallway step (select models)
"Flip-up" table top storage next to tri-fold sofa (select models)
Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
Toe kick night lights in bedroom, bathroom and kitchen
Pull-out spice rack above microwave (select models)
Farmhouse stainless steel kitchen sink
Residential-grade, pull-out kitchen faucet
Extra 120V power outlets in kitchen and slide rooms
Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
Pull-out utility drawer under kitchen sink
Residential quilted bedspread and pillows
Cedar-lined front wardrobe closet
Gas-strutted under-bed storage
P.A.P. prepped bedroom (includes 120V outlets and night stands)
Carbon monoxide and LP detector
Flip-up hidden storage in bedroom chest of drawers
Built-in laundry hamper in wardrobe (select models)
Cup holders in bedroom nightstands (N/A 36SSWS)
Bathroom skylight
LED backlit custom framed mirror
Vessel bowl sink in main bath
Porcelain toilet with foot flush

Customer Value Package (Mandatory)

15,000 BTU "Whisper Quiet" A/C with heat pump (main)
15,000 BTU "Whisper Quiet" A/C (bedroom)
Electric patio awning with integrated LED lights
Gas/electric DSI water heater
Custom machined aluminum rims
Keyed-Alike™ lock system (single key for all doors/locks)
Rooftop and ground solar prep
Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
Hidden hinges on cabinet doors
XL grab handle
Home entertainment system with subwoofer
50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI cables
Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches
Residential king (72 in. x 80 in.) mattress with under-bed storage
Refrigerator temperature sensors linked to JAYCOMMAND®

5-Star Handling Package

16" Goodyear® Endurance® tires
MORryde® rubber pin box
Dexter® axles with Nev-R-Adjust® brakes and E-Z Lube® hubs, & 4,000 lb. leaf springs
MORryde® LRE-4000™ rubberized suspension
Wet bolt fasteners and bronze bushings

Luxury Package (Mandatory)

6-point hydraulic auto-leveling system
MORryde® StepAbove™ entrance steps (main entrance) with strut assist
2nd electric patio awning with integrated LED lights
Powered 50-amp cord reel
JAYCOMMAND® “Smart RV” system
Cellular prep for antenna and JAYCOMMAND®
High gloss gelcoated sidewalls
Oversized multi-battery compartment (industry leading room for 4-6 batteries)
32” 4K outside Smart LED TV
Solid hardwood cabinet stiles
Central vacuum system
Day/night roller shades in living room
Frameless dark tinted safety-glass windows
Free-standing (no pedestal) table with leaf, 2 free-standing (with under seat
storage) and (2) folding chairs
LED fireplace with electric space heater
Fresh Drinking Water System™ (patent-pending) for fresh drinking water at the kitchen sink and water/ice dispensers in the residential refrigerator
Residential refrigerator with 1800W pure sine wave inverter
30” residential microwave
Residential 24 in. Insignia™ stove (3.73 cu. ft. with 12K BTU high output burner)
Residential solid-surface kitchen countertop with solid-surface sink covers
32 in. 4K Smart bedroom TV
Residential walk-in shower with shampoo/soap holder/teak seat
Washer/dryer prep

Options

True interior design choice (Modern Farmhouse or Silver Mist)
Truma on-demand hot water system
Full body paint- Sand, Steel and Diamond
Overlander II Solar Package (30 amp controller, (1) 800W inverter and (2) 200 watt solar panels)
Wireless backup/side view/front entry door observation kit with 7in. monitor
Sani-Con® Turbo waste management system
Generator prep with 120 lb. max LP system includes (3) 40lb. LP bottles
5,500W Onan® Microquiet generator
Frameless dual-pane tinted safety-glass windows
Slideout awning (quantity varies by model)
7K Hydraulic disc brake package
8K Hydraulic disc brake package
3rd-15,000 BTU ducted A/C
18 cu. ft. Norcold® Polar Max gas/electric refrigerator
Queen residential foam-top mattress
Front wardrobe in place of front windshield and sofa lounge (36SSWS)
Butler’s pantry (in place of half bath, 38FLGS)
Outside griddle for JayPort system (32RLTS, 36FBTS, 36KPTS, 36SSWS)
Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
